TremLock® K-Zip Panel

TremLock® K-Zip aluminum standing seam roof panels offer a versatile, high-performance solution designed for a wide range of roof retrofit and replacement applications. Precision-formed aluminum sheets are mechanically seamed for structural capacity and weathertightness, delivering long-lasting protection. Aluminum provides excellent corrosion resistance and minimal maintenance requirements, even in demanding or coastal environments. Compared to traditional roofing materials, TremLock K-Zip panels are lightweight, highly durable and fully recyclable, creating a sustainable roof that maintains its value and appearance for decades.

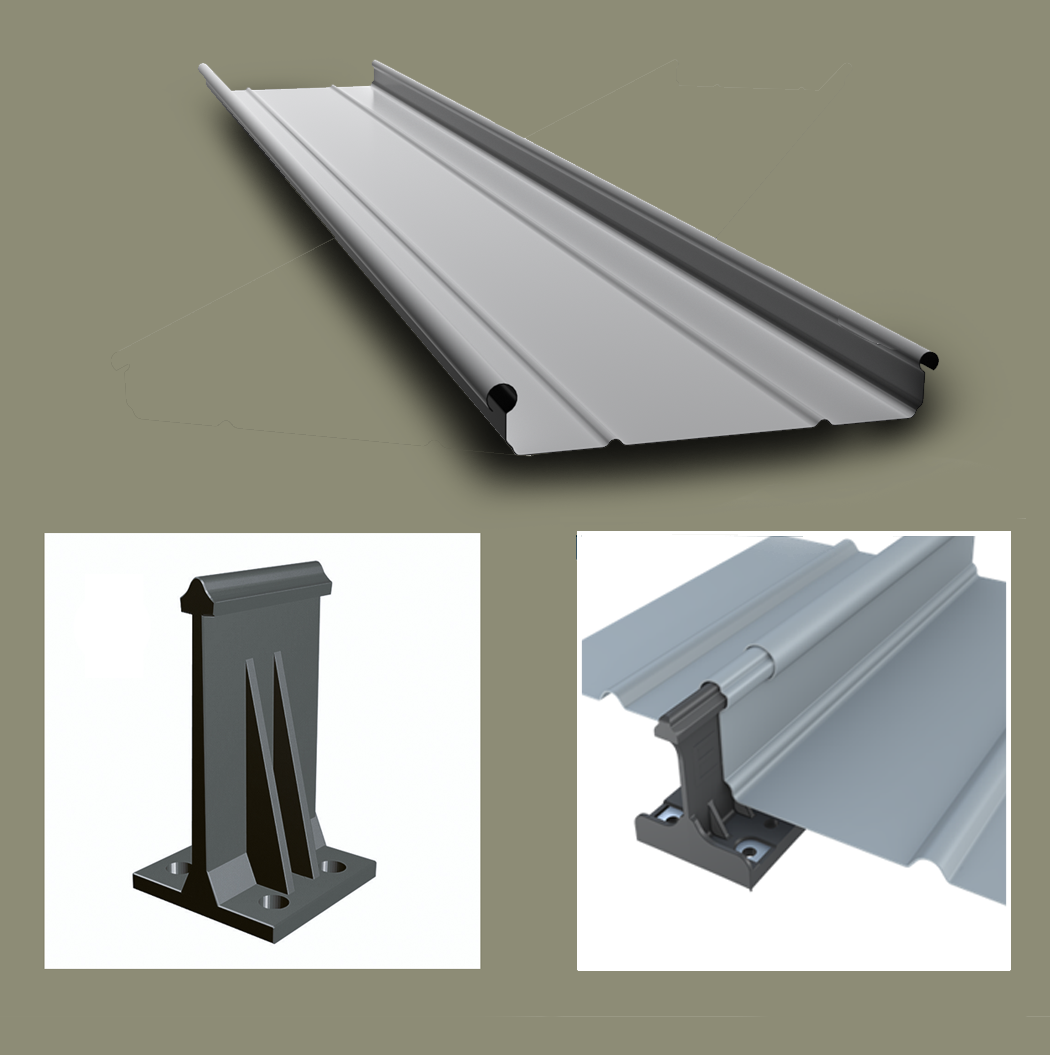

TremLock K-Zip aluminum panels are anchored to the substrate with concealed clips designed to accommodate thermal cycling of the roof sheet. To meet the varying needs of specifiers and contractors, TremLock K-Zip panels are available in a range of seam heights and panel widths:

Seam heights of approximately 2 and 2.5”
Pan widths of approximately 12”, 13”, 16”, 17” and 20”

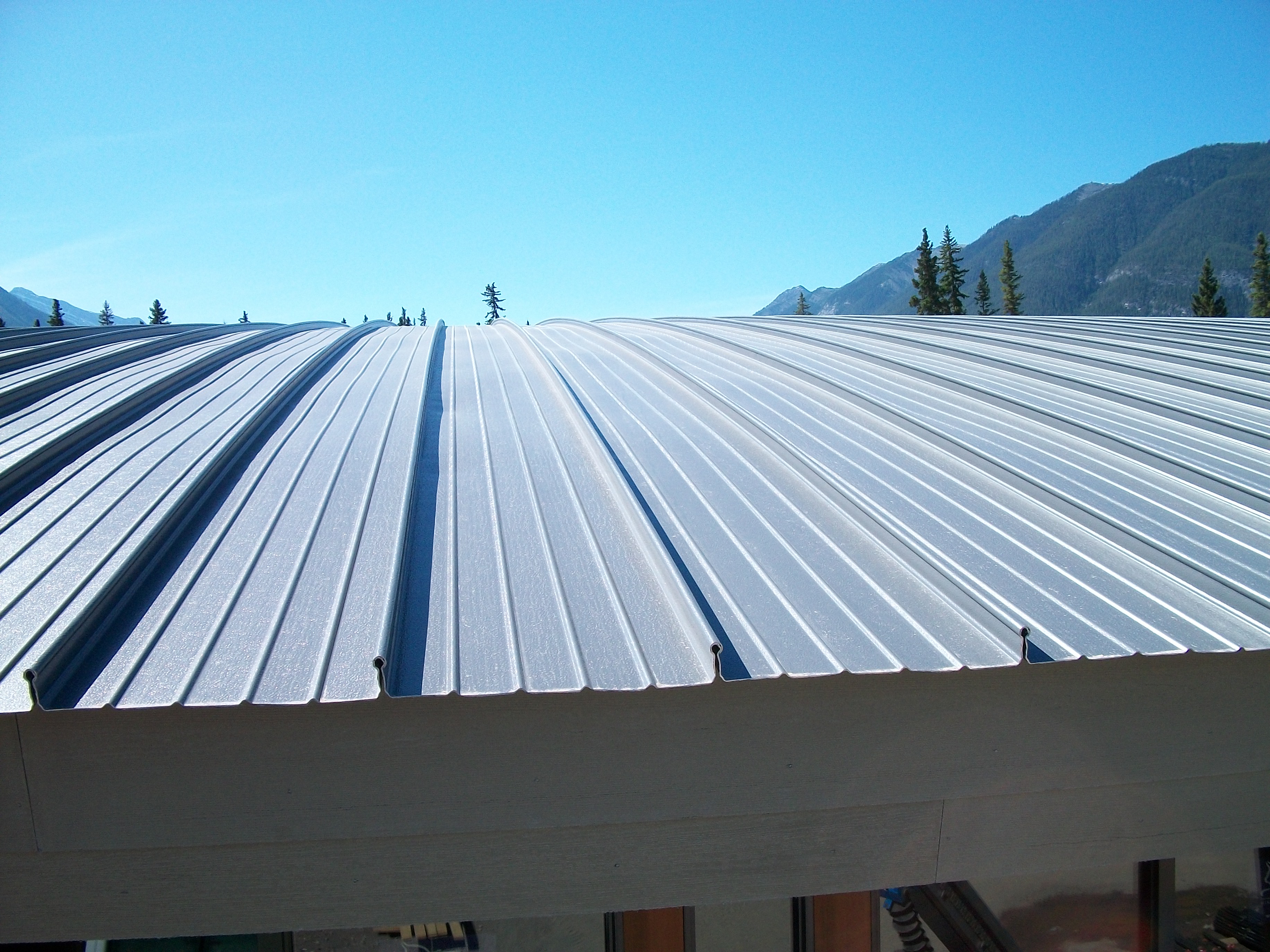

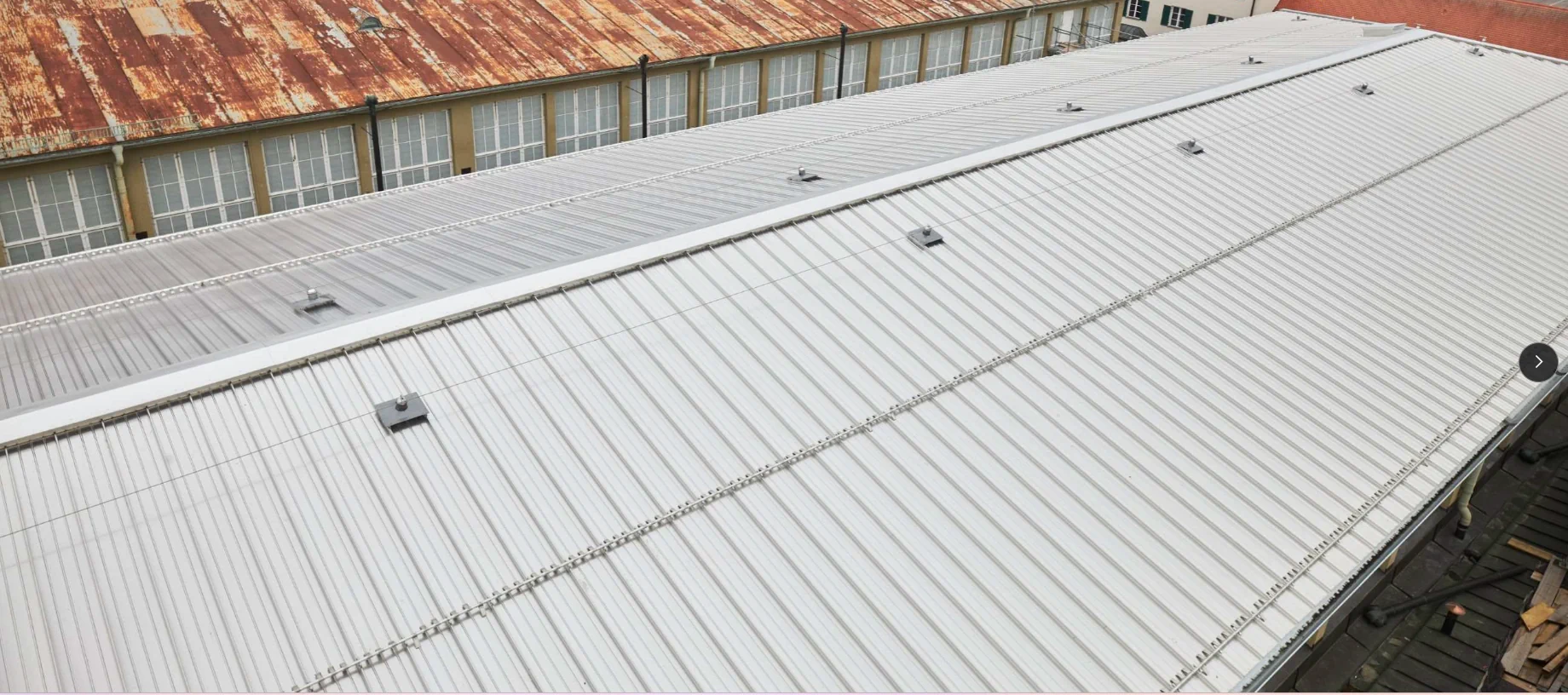

Project images include aluminum standing seam roof panel systems previously sold under the Kalzip® brand, now offered as TremLock K-Zip® within the Tremco portfolio.

Recommended for:

Replacements

Retrofit

Download Product Data Sheet Find a Rep

Benefits

	Width (in)	Min slope	Pencil Ribs	Convex curving	Concave curving	Site roll forming	Site Curving	FM 4471	Miami Dade NOA

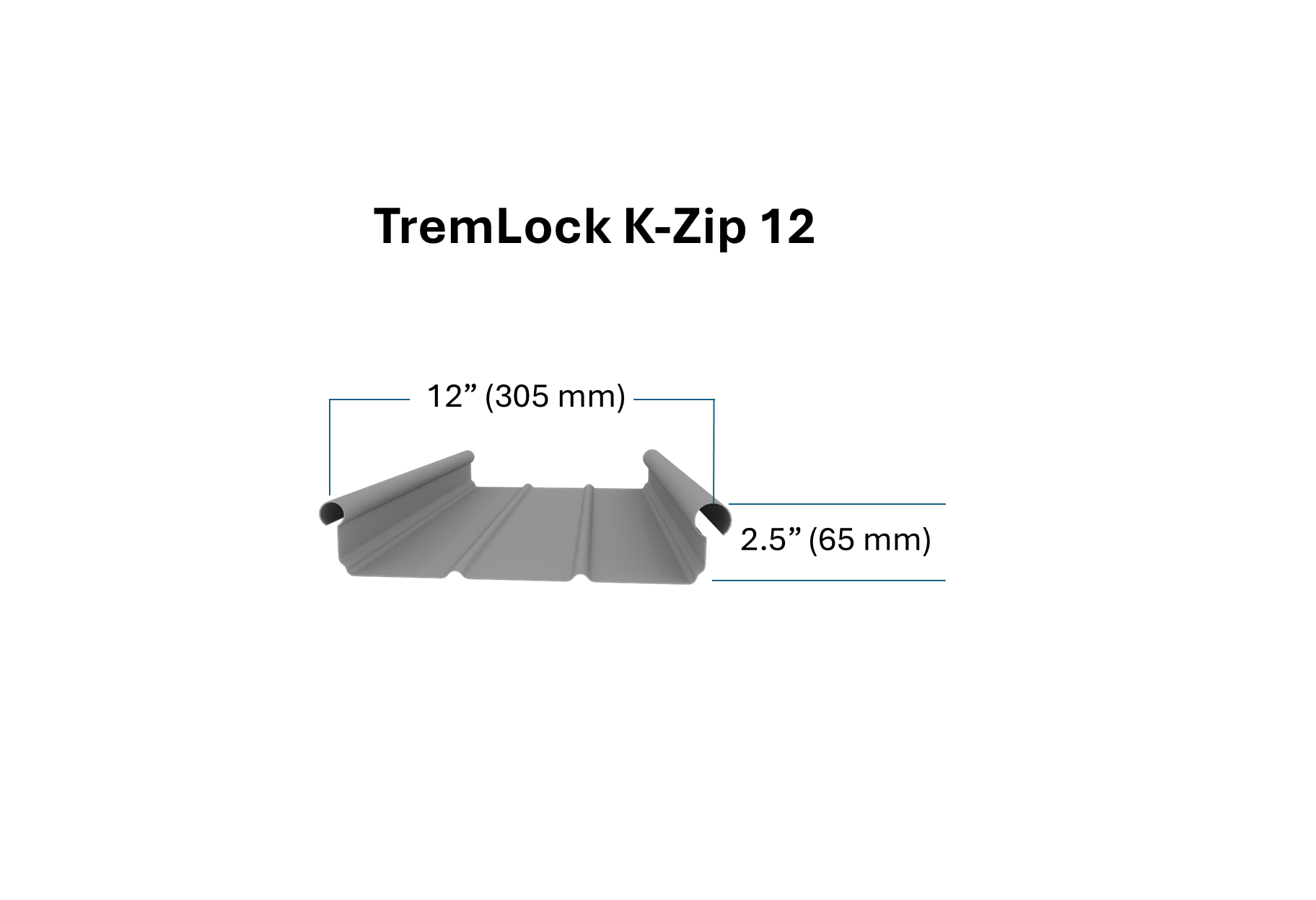

TremLock K-Zip 12	12”	1/4":12	2	5’	33’	x	x	x	x

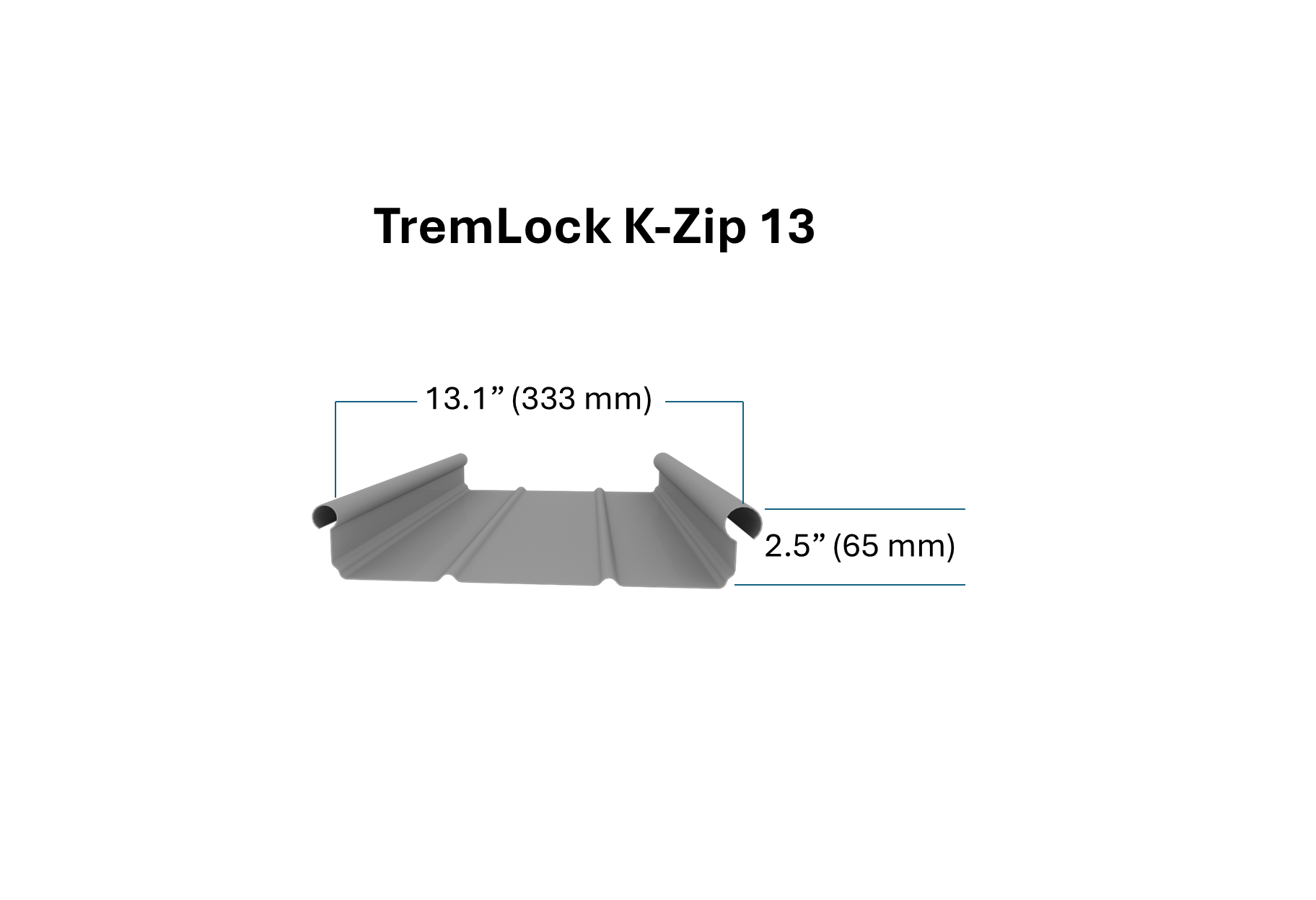

TremLock K-Zip 13	13.1”	1/4":12	2	5’	33’	x	x	x

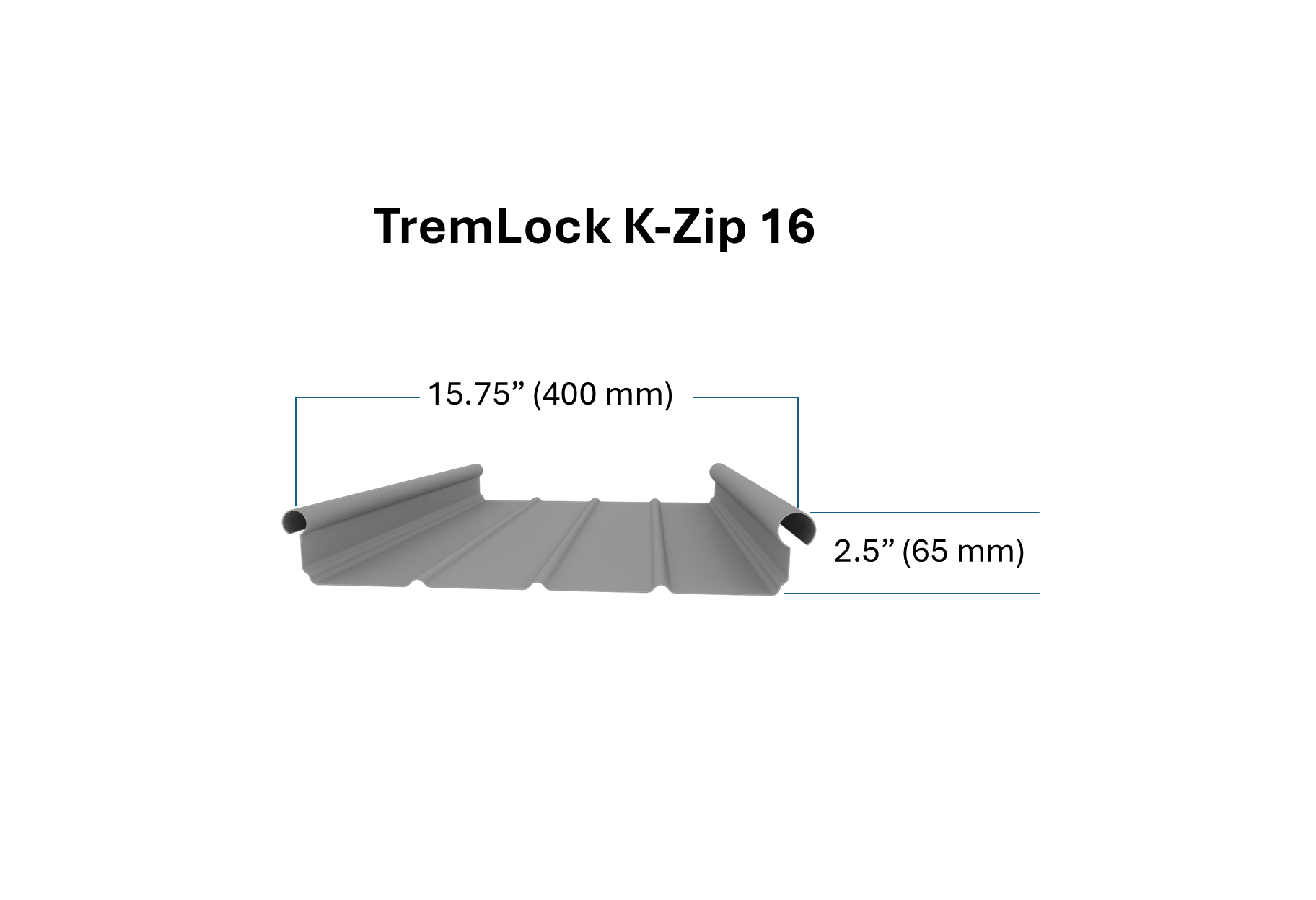

TremLock K-Zip 16	15.75”	1/4":12	3	5’	33’	x	x	x

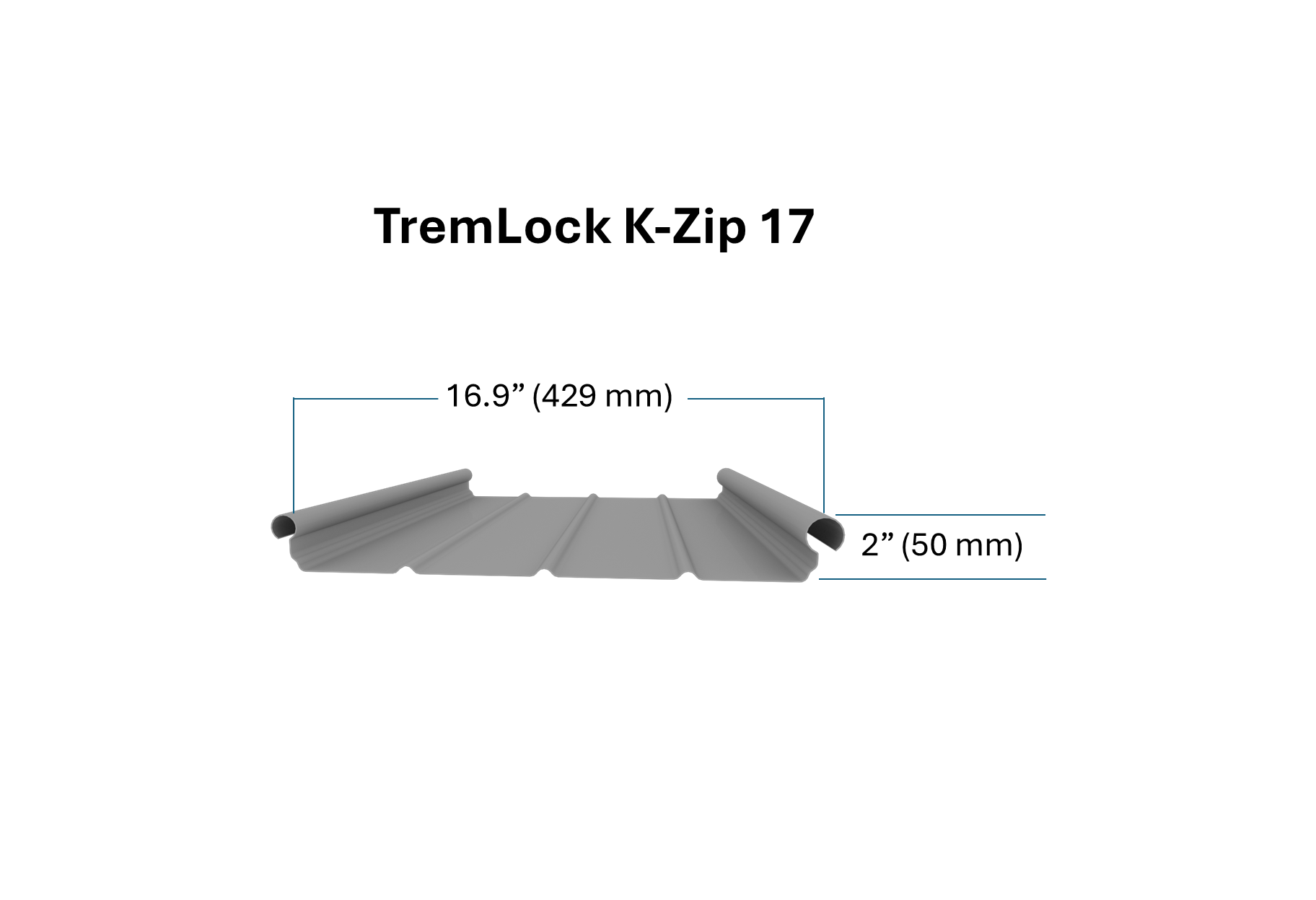

TremLock K-Zip 17	16.9”	1/4":12	3	4’-3”	23’	x	x

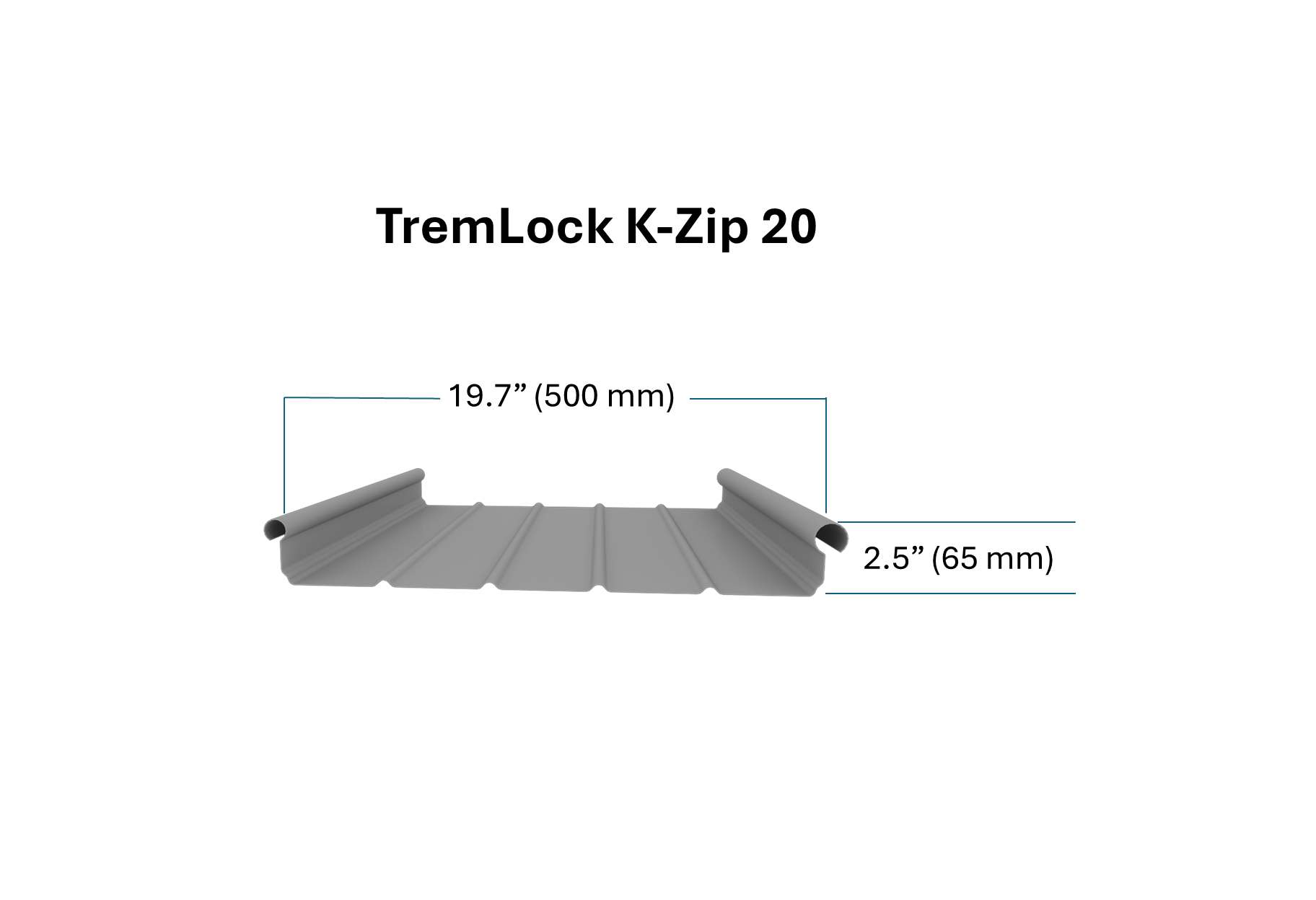

TremLock K-Zip 20	19.7”	1/4":12	4	5’	33’	x	x

Frequently Asked Questions

Yes. TremLock K-Zip is engineered for owners and facility managers replacing or recovering aging shingle or metal roofs. It offers extended roof service life and improves performance while minimizing disruption to occupied, operational buildings.

Yes, this panel can be site roll-formed and curved.

Yes, the TremLock K-Zip 12 delivers excellent uplift performance under high wind loads.

TremLock K-Zip panels are attached via concealed halter clips that allow for unlimited thermal movement.

Yes, the outer surface of the TremLock K-Zip panels are penetration free. Panels are secured to the substrate with concealed clips.

Very minimal maintenance is required over the lifetime of the roof, for specific cleaning instructions contact us.

When installed according to Tremco instructions, the TremLock K-Zip roof should have a minimum service life of 40 years in rural and suburban environments, or 25 years in marine or industrial environments. For building owners and facility managers, TremLock K-Zip system offers long-term performance, durability and lower life-cycle costs across decades of service.
